In the fields of printing, packaging and electronic manufacturing, UV curing inks have become the mainstream of the industry due to their high efficiency, environmental protection, high precision and other characteristics. However, problems such as color difference and precipitation caused by uneven pigment dispersion have always been technical pain points. The T-7050 UV resin launched by Shenzhen U-Sunny innovatively integrates the Pigment Wetting Agent technology to provide a more stable and efficient solution for the ink, adhesive and pressure-sensitive adhesive industries.
1. Pigment dispersion problem and technical breakthrough of wetting agent
In traditional UV ink, pigment particles are easy to agglomerate, resulting in color difference, uneven glossiness and even nozzle clogging. T-7050 UV resin achieves breakthroughs through the following technologies:
Efficient wetting and dispersion: built-in wetting agent molecules can reduce the surface tension of the pigment, making it evenly distributed in the resin system, with a dispersion fineness of <5μm.
Long-term stability: prevents pigment sedimentation and extends the storage period to more than 12 months.
Broad-spectrum compatibility: suitable for a variety of fillers such as organic/inorganic pigments, metal powders, pearlescent powders, etc.
2. Core applications of T-7050 in inks, adhesives and pressure-sensitive adhesives
2.1. High-precision UV printing inks
Inkjet printing: suitable for non-absorbent substrates such as ceramics and glass, with adhesion of 4B (ASTM D3359) after curing, and color saturation increased by 30%.
Screen printing: used for electronic product LOGO printing, alcohol wiping resistance > 500 times.
3D printing photosensitive resin: supports nano-level pigment dispersion to achieve delicate coloring of complex structural parts.
2.2. High-performance adhesives
Optical adhesive (OCA): Wetting agent increases light transmittance to 92%, used for touch screen bonding, no bubbles, no yellowing.
Structural bonding: Shear strength for metals and plastics > 15MPa, high temperature resistance 100℃.
2.3. Functional pressure-sensitive adhesives
Weather-resistant labels: Adhesion retention rate > 90% in outdoor environments, anti-UV aging for 2000 hours.
Repositionable tape: By adjusting the wetting agent ratio, zero residual adhesive peeling can be achieved, suitable for temporary fixation of electronic products.

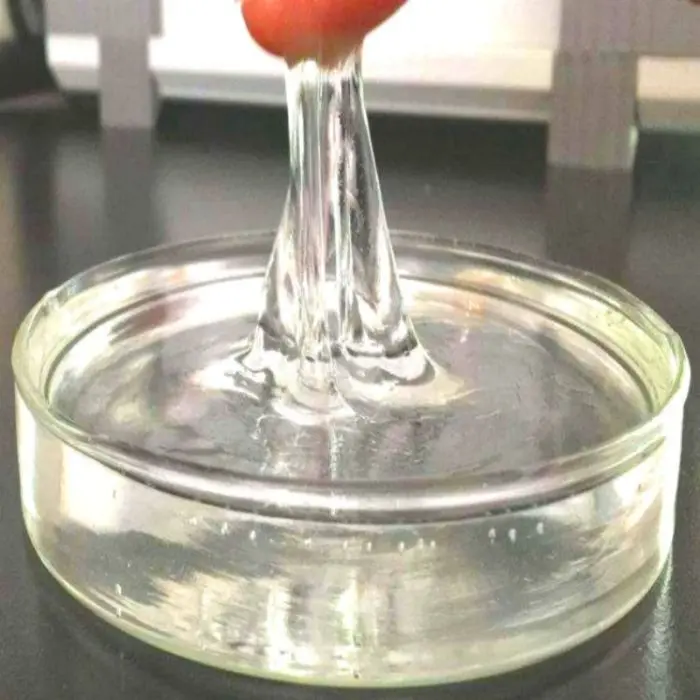

3. Technical parameters and performance of T-7050 UV resin
| Indicators | Parameter value | Test Standards |
|---|---|---|
| Appearance | Transparent light yellow liquid | ASTM D1544 |
| Viscosity (25°C) | 20050-35000 mPa·s | ISO 2555 |
| Curing speed (365nm) | ≤3秒 | UV energy: 80mJ/cm² |
| Adhesion (PP substrate) | ≥4B | ASTM D3359 |
| Elongation at break | 150%-200% | ASTM D638 |
| Chemical resistance | Soak in 5% NaOH/5% H₂SO₄ for 48h | IPC TM-650 |
4. Why choose U-Sunny T-7050 UV resin?
Shenzhen U-Sunny is deeply engaged in the research and development of light-curing materials. The differentiated advantages of T-7050 include:
Customized formula: adjust the wetting agent content, viscosity and curing speed according to customer needs.
Environmental compliance: pass RoHS and REACH to meet export standards.
Full process support: provide one-stop service for pigment pre-dispersion, formula optimization and production line adaptation.
5. Application Cases: Diversified Scenarios from Packaging to Electronic Manufacturing
Case 1: High-end Cosmetics Bottle Printing
Customer Requirements: Metallic gloss UV ink, requiring zero color difference and resistance to alcohol wiping.
Solution: T-7050 is combined with aluminum silver powder to achieve a mirror effect and improve friction resistance by 40%.
Case 2: Flexible Circuit Board Protective Glue
Customer Requirements: Highly transparent and resistant to bending UV adhesive layer.
Solution: The flexibility of T-7050 (elongation at break 180%) works synergistically with the wetting agent to pass the 100,000 bending test.
Conclusion
Shenzhen U-Sunny T-7050 UV resin takes pigment wetting agent as the core, redefines the performance boundary of UV curing ink, and enables innovation in adhesives, pressure sensitive adhesives and other fields. If you need technical consultation or free samples, please contact our engineering team immediately to start a new chapter of efficient and stable production!
