As global environmental regulations become stricter and manufacturing energy efficiency upgrades, LED UV Curing Resin for Coatings is rapidly replacing traditional thermal curing coatings with its low energy consumption, high precision and zero VOCs emission characteristics, becoming the core material for green transformation in the automotive, consumer electronics and packaging industries.
Shenzhen U-Sunny's U-9200 series resin is optimized for LED light sources (365–405 nm) and can be fully cured within 3 seconds at 300–400 mJ/cm² energy. It has passed the supply chain certification of leading companies such as Tesla and Samsung, providing efficient and sustainable solutions for functional coatings.
Technical advantages and performance breakthroughs
1. High energy efficiency and wide wavelength compatibility
U-Sunny U-9200 resin is adapted to LED curing systems through the following innovations:

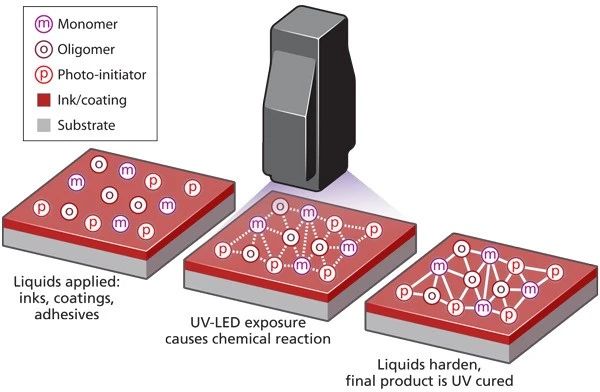

Optimization of photoinitiator: The use of benzophenone/iodonium salt hybrid system increases the light energy utilization rate by 30%, and is compatible with the 395 nm mainstream LED wavelength (error ±5 nm).
Low temperature curing characteristics: The surface temperature of the substrate is <50°C, which avoids deformation of heat-sensitive materials (such as PET film, engineering plastics).
Low energy consumption cost: 65% energy saving and 40% reduction in carbon emissions compared to traditional mercury lamp systems (actual measured data).
2. Comprehensive improvement of coating performance
Balance of hardness and flexibility: The pencil hardness reaches 3H (ISO 15184), and the bending modulus is adjustable from 0.8–2.5 GPa, which is suitable for rigid metal or flexible folding screen substrates.
Chemical and weather resistance: Passed 48-hour salt spray test (ASTM B117) and 2,000-hour QUV aging (ASTM G154), with no cracking or yellowing of the coating.
High light transmittance and low haze: Transmittance > 93% (@550 nm), haze < 0.3%, meeting the requirements of optical lenses and display panels.
3. Environmental protection and process compatibility
Zero solvent formula: VOCs content < 10 ppm, in compliance with EU REACH, RoHS and China GB/T 38597-2020 standards.
High-speed coating adaptation: Viscosity 300–800 cP (25°C), supports spraying, roller coating, spin coating and other processes, and the production line speed can reach 30 m/min.
Industry applications and customer cases
1. Automotive functional coatings
U-9200 resin achieves a double breakthrough in safety and efficiency in the insulation coating of new energy vehicle battery packs:
Performance parameters: volume resistivity>1×10¹⁵ Ω·cm (IEC 62631-3), arc resistance>180 seconds (ASTM D495).
Customer case: After being adopted by a global TOP 3 battery manufacturer, the coating curing time was shortened to 4 seconds, and the energy consumption of the production line was reduced by 50%.
2. Consumer electronics metal texture coating
For mobile phone middle frames and home appliance shells, U-Sunny resin provides metallic luster and anti-fingerprint performance:
Technical highlights: Adding nano-silicon dioxide (particle size 20 nm) to achieve Ra<0.1 μm surface roughness and hydrophobic angle>110°.
Mass production data: After a mobile phone brand was introduced, the coating yield increased from 92% to 99.8%, and the cost was reduced by 25%.
3. Food packaging barrier coating
On PET food packaging film, UV resin replaces traditional PE coating to meet FDA direct contact standards:
Barrier performance: oxygen transmission rate <5 cm³/m²·day (ASTM D3985), water vapor transmission rate <2 g/m²·day (ASTM E96).
Environmental certification: Passed SGS recyclability certification, carbon footprint reduced by 60% compared with traditional processes.
Market trends and technological innovation
According to the Grand View Research report, the global LED UV coating resin market size will reach US$1.2 billion in 2023 and is expected to exceed US$2.8 billion in 2030, with a compound annual growth rate of 11.3%. Technological evolution focuses on the following directions:
Intelligent light intensity control: integrated light sensors adjust LED power in real time, and curing energy consumption is reduced by another 20%.
Development of bio-based resins: using renewable monomers such as cardanol derivatives, with a bio-based content of >30% (U-Sunny has mass-produced pilot products).
Self-healing coating technology: through dynamic covalent bond design, coating scratches can be self-healed at 60°C (repair rate >90%).
LED UV Curing Resin for Coatings is reshaping the competitive landscape of the global coating industry through its dual advantages of energy saving, high efficiency and performance upgrades. Shenzhen U-Sunny Technology (U-Sunny) provides customers in the automotive, electronics, packaging and other fields with environmentally friendly and high-performance coating materials with its U-9200 series resins and customized solutions. With the advancement of the carbon neutrality goal, this technology will continue to lead industry innovation in the wave of green manufacturing.
